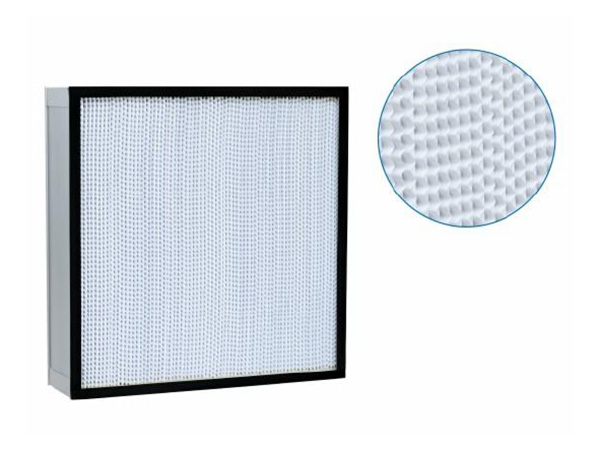

有隔板空气过滤器作为传统产品，广泛应用于洁净室及其它对空气洁净度有要求的领域。
|
框材 Frame |
铝框/不锈钢框/镀锌框 Aluminum/stainless stee/galvanized frame |
|---|---|
|
间隔物 Spacers |
双胶纸/铝箔 Offset paper/Aluminum foil |
|
滤纸 Filter media |
玻纤滤纸 Glass fiber |
|
密封 Gasket |
PU发泡密封/CR密封条 PU foam seal/CR seal strip |
|
运行条件 Operation conditions |
<80%/100%RH,<80℃ |
| 型号Model |
外形尺寸 (L×W×D) Dimensions(mm) |
额定风量(m³/h) Rated airflow |
初阻力(Pa)Nitial pressure drop | |||||
|---|---|---|---|---|---|---|---|---|
|
计数效率 F7@0.4um Efficiency 80%≤E<90% |
计数效率 F8@0.4 um Efficiency 90%≤E<95% |
计数效率 E10@MPPS Efficiency 85%≤E<95% |
计数效率 E12@MPPS Efficiency 99.5%≤E<99.95% |
计数效率 H13@MPPS Efficiency 99.95%≤E <99.995% |
计数效率 H14@MPPS Efficiency 99.995%≤E <99.9995% |
|||
| GB610.610-150 | 610×610×150 | 1000 | 60 | 70 | 110 | 160 | 200 | 2200 |
| GB762610-150 | 762×610×150 | 1250 | ||||||
| GB820.610-150 | 820×610×150 | 1350 | ||||||
| GB320.320-220 | 320×320 ×220 | 400 | ||||||
| G484.484-220 | 484×484×220 | 1000 | ||||||
| GB630.630-220 | 630×630×220 | 1500 | ||||||
| GB1260.630-220 | 1260×630×220 | 3000 | ||||||
| GB592.592-292 | 592×592×292 | 1850 | ||||||
| GB610.610-292 | 610×610×292 | 2000 | ||||||
